PJ-3.5-342GX（贴片）

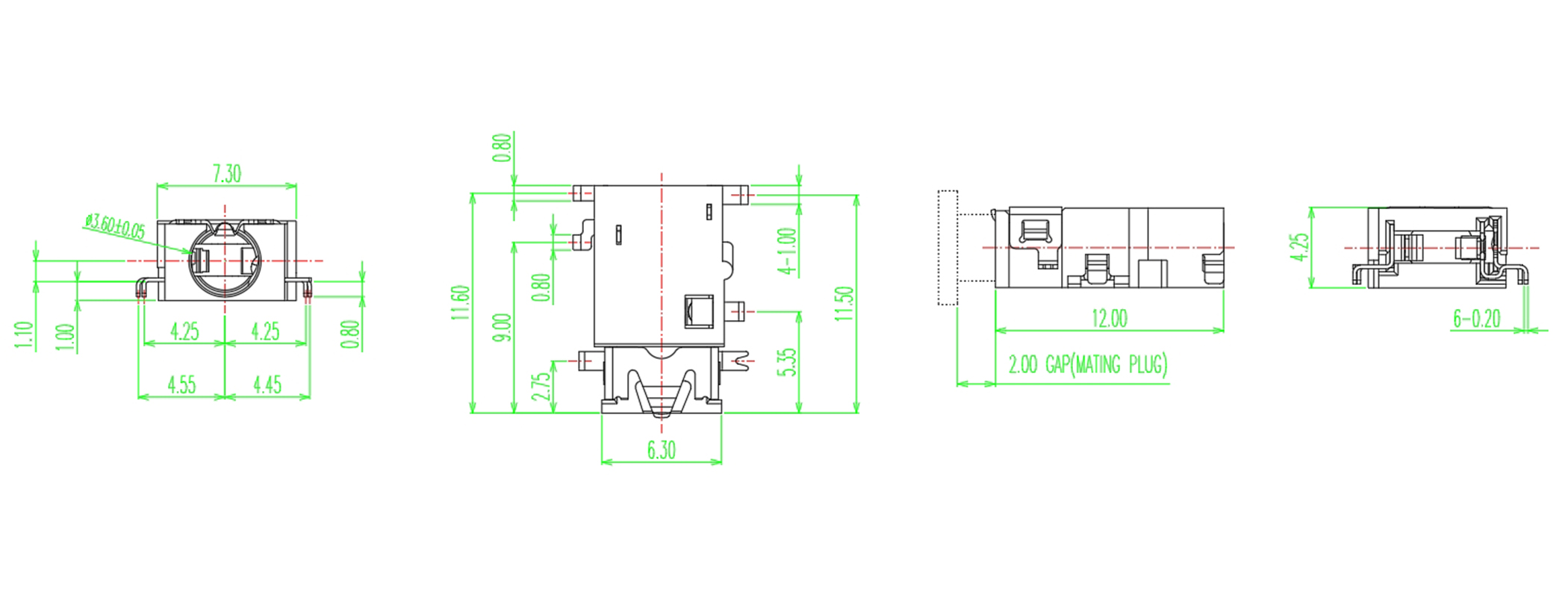

耳机插座 L12.0*W7.3*H4.25*CH2.1 12V1A
产品介绍
技术参数
● 插座内芯(Inner core):Ø3.5 | ● 绝缘电阻(Insulation resistance):≥100MΩ |
● 插外孔(0uter hole): | ● 耐电压(Withstand voltage):500VAC for 1 min |
● 温度范围(0perating temp):-25℃ T0+85℃) | ● 操作寿命(0peration life):5000Cycles Min |
● 额定负荷(Rated load):DC12V 1A | ● 插拔力(0perating force):3-30N |
● 接触电阻(Contact resistance):≤0.1Ω | ● 焊接方式(Welding mode): |
● 绝缘电阻(Insulation resistance):≥100MΩ | ● 包装方式(Packing method): |
● 耐电压(Withstand voltage):500VAC for 1 min | ● 最小包装(Minimum packing): |
