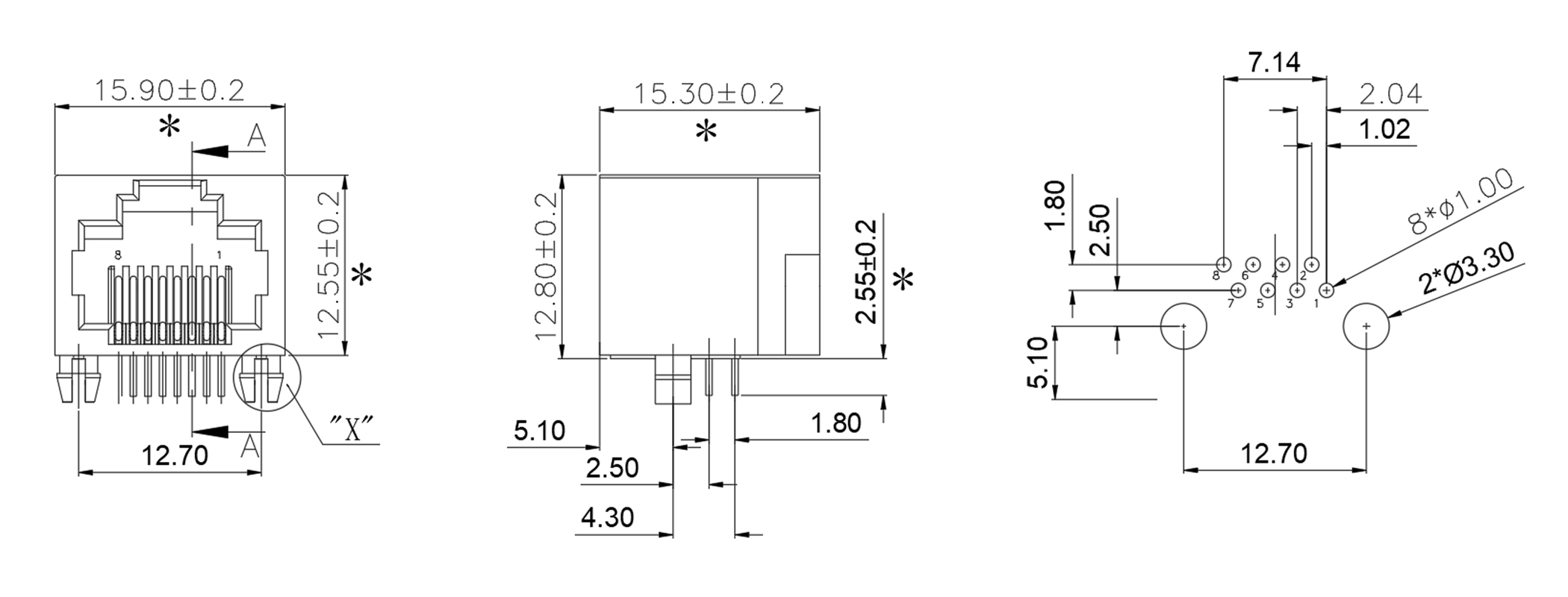

RJ45-108 全塑单口带后塞
网络插座 L15.9*W15.3*H12.55 125V1.5A
产品介绍
技术参数
● 插座内芯(Inner core): | ● 绝缘电阻(Insulation resistance):≥500MΩ |
● 插外孔(0uter hole): | ● 耐电压(Withstand voltage):1000VAC for 1 min |
● 温度范围(0perating temp):-40℃ T0+85℃) | ● 耐久性(DURRABILITY):750 CYCLES Min |
● 额定负荷(Rated load):DC125V 1.5A | ● 插拔力(0perating force):20N Max |
● 接触电阻(Contact resistance):≤0.03Ω | ● 焊接方式(Welding mode): |
● 绝缘电阻(Insulation resistance):≥500MΩ | ● 包装方式(Packing method): |
● 耐电压(Withstand voltage):1000VAC for 1 min | ● 最小包装(Minimum packing): |
资料下载
