RJ45-KRV-1-NS

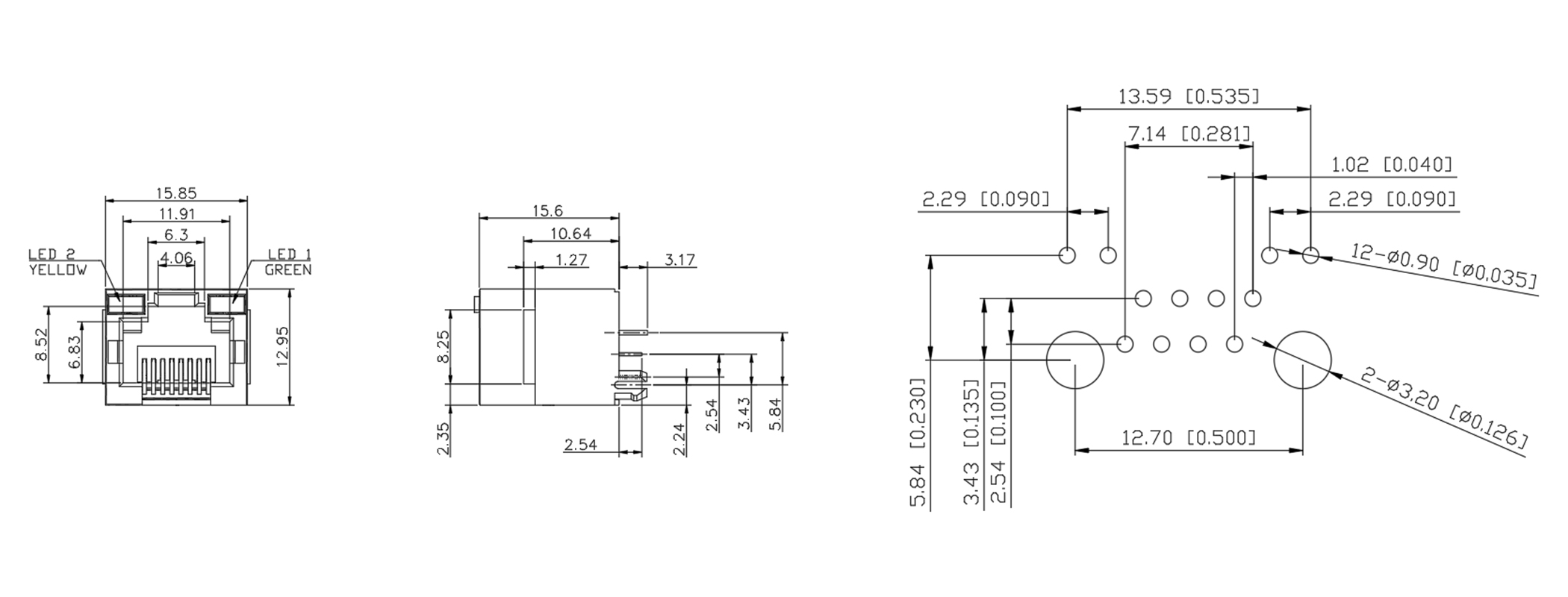

网络插座 L15.85*W15.6*H12.95
产品介绍
技术参数
● 插座内芯(Inner core): | ● 绝缘电阻(Insulation resistance):≥500MΩ |
● 插外孔(0uter hole): | ● 耐电压(Withstand voltage):500VAC for 1 min |
● 温度范围(0perating temp):-30℃ T0+70℃) | ● 耐久性(DURRABILITY):750 CYCLES Min |
● 额定负荷(Rated load): | ● 插拔力(0perating force): |
● 接触电阻(Contact resistance): | ● 焊接方式(Welding mode): |
● 绝缘电阻(Insulation resistance):≥500MΩ | ● 包装方式(Packing method): |
● 耐电压(Withstand voltage):500VAC for 1 min | ● 最小包装(Minimum packing): |
