WAFER-2.0-2P

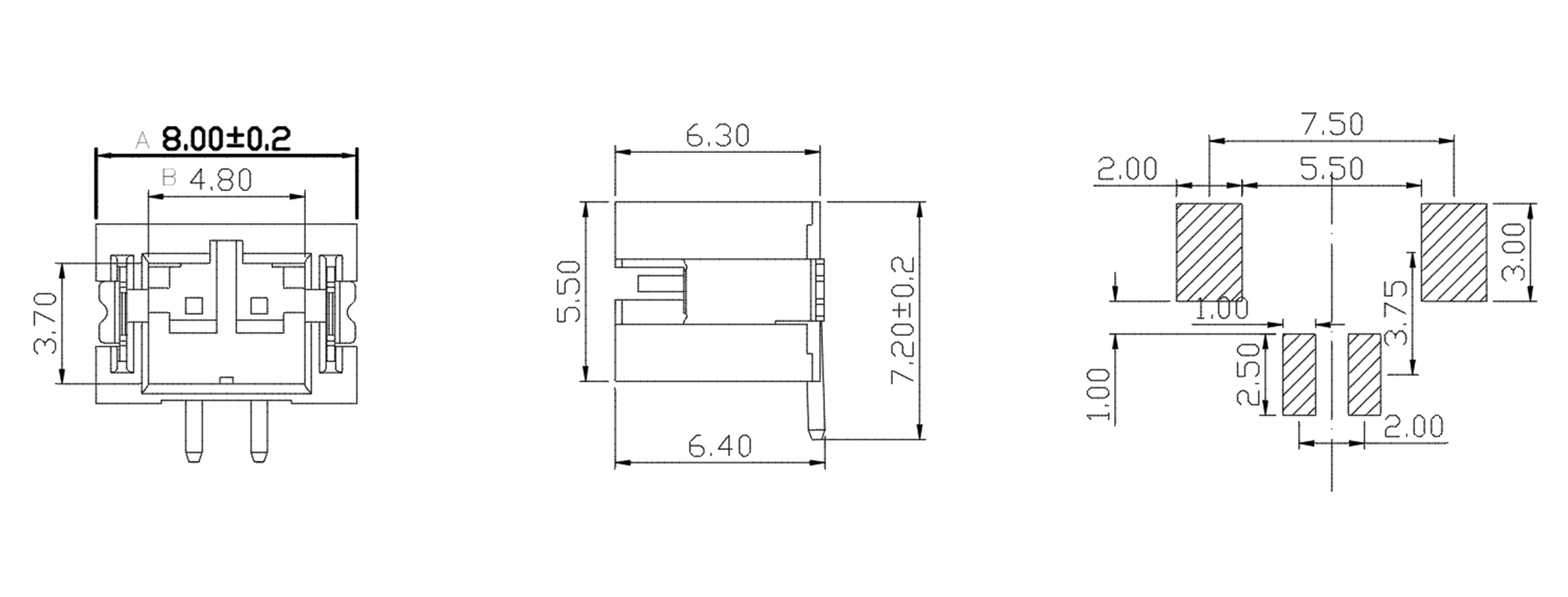

WAFER连接器 L8.0*W6.3*H5.5 125V2A
产品介绍
技术参数
● 插座内芯(Inner core): | ● 绝缘电阻(Insulation resistance):≥1000MΩ |
● 插外孔(0uter hole): | ● 耐电压(Withstand voltage):200VAC for 1 min |
● 温度范围(0perating temp):-40℃ T0+85℃) | ● 操作寿命(0peration life): |
● 额定负荷(Rated load):DC125V 2A | ● 插拔力(0perating force): |
● 接触电阻(Contact resistance):≤0.05Ω | ● 焊接方式(Welding mode): |
● 绝缘电阻(Insulation resistance):≥1000MΩ | ● 包装方式(Packing method): |
● 耐电压(Withstand voltage):200VAC for 1 min | ● 最小包装(Minimum packing): |
资料下载
