RJ45-5803-10P8C

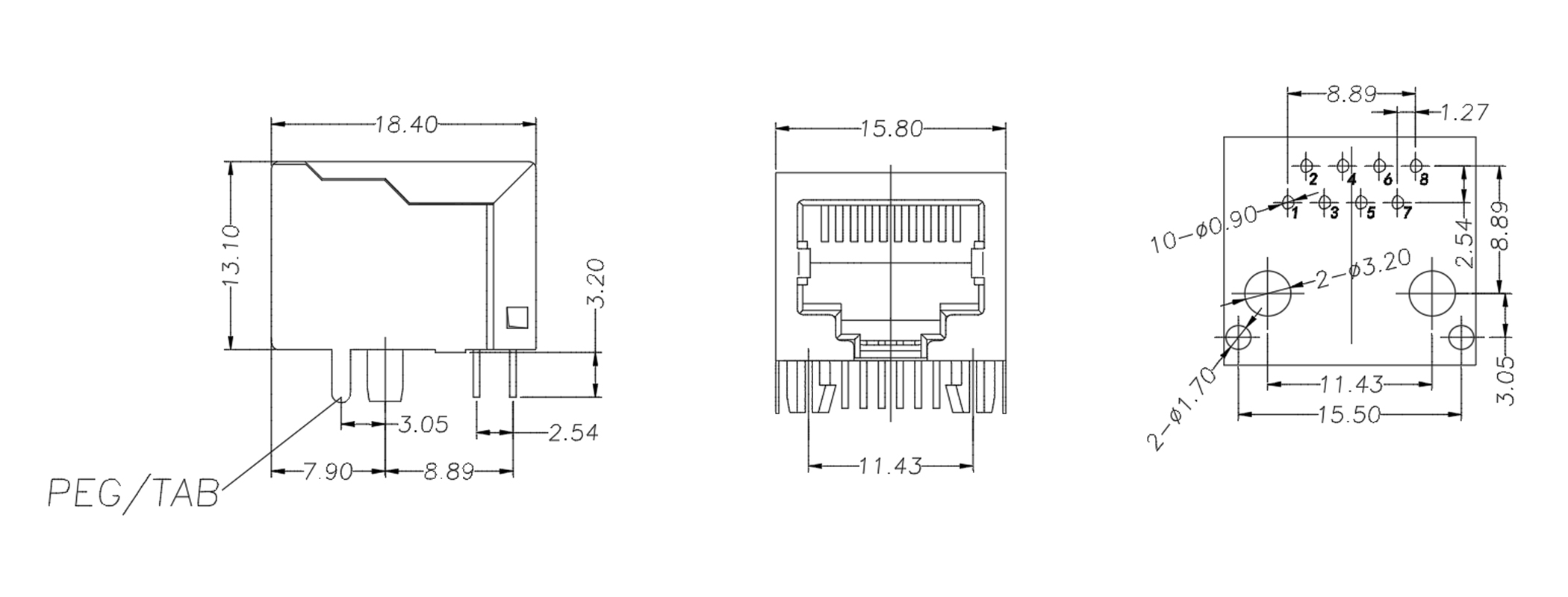

网络插座 L15.8*W18.4*H13.1 125V1.5A
产品介绍
技术参数
● 插座内芯(Inner core): | ● 绝缘电阻(Insulation resistance):≥500MΩ |
● 插外孔(0uter hole): | ● 耐电压(Withstand voltage):1000VAC for 1 min |
● 温度范围(0perating temp):-40℃ T0+85℃) | ● 耐久性(DURRABILITY):750 CYCLES Min |
● 额定负荷(Rated load):DC125V 1.5A | ● 插拔力(0perating force): |
● 接触电阻(Contact resistance):≤0.05Ω | ● 焊接方式(Welding mode): |
● 绝缘电阻(Insulation resistance):≥500MΩ | ● 包装方式(Packing method): |
● 耐电压(Withstand voltage):1000VAC for 1 min | ● 最小包装(Minimum packing): |
