USB AF 90°侧插 短体正向 卷四边 白胶铁壳

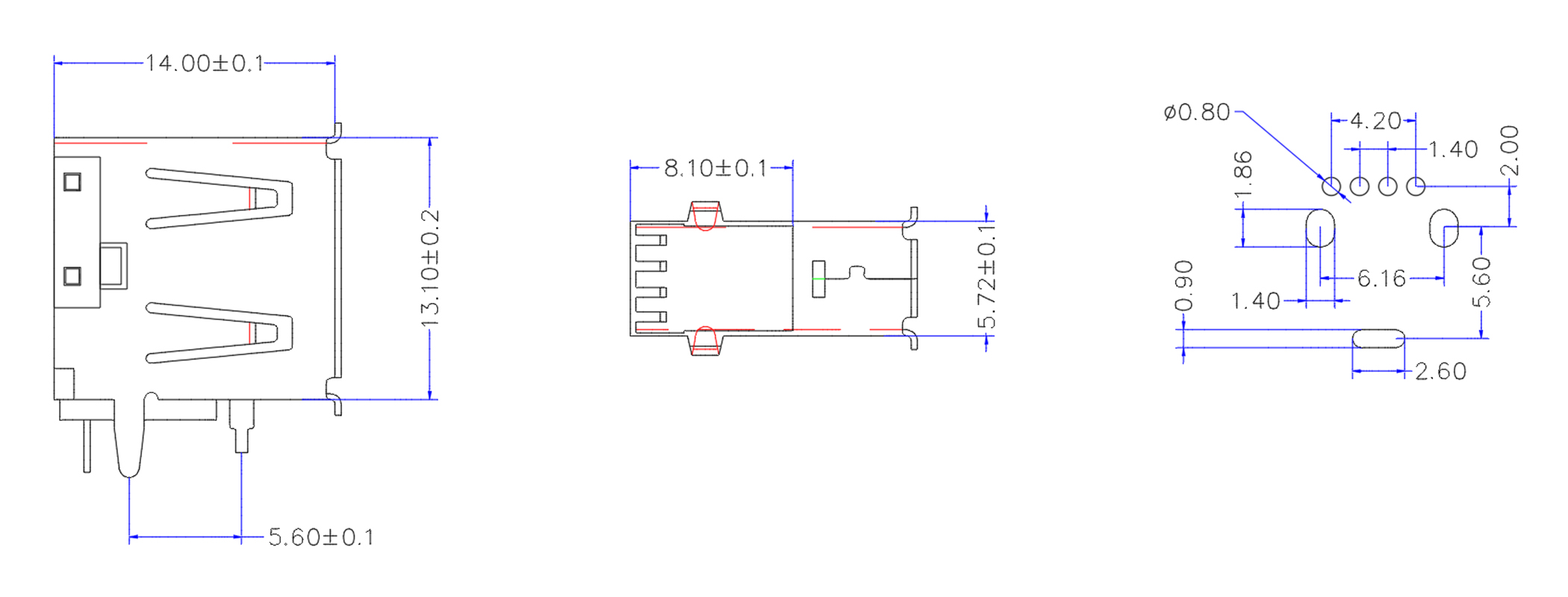

USB连接器 L5.72*W14.0*H13.1 1.5A
产品介绍
技术参数
● 插座内芯(Inner core): | ● 绝缘电阻(Insulation resistance):≥100MΩ |
● 插外孔(0uter hole): | ● 耐电压(Withstand voltage):500VAC for 1 min |
● 温度范围(0perating temp):-55℃ T0+105℃) | ● 操作寿命(0peration life): |
● 额定负荷(Rated load):DC1.5A | ● 插拔力(0perating force):7-45N |
● 接触电阻(Contact resistance):≤0.05Ω | ● 焊接方式(Welding mode): |
● 绝缘电阻(Insulation resistance):≥100MΩ | ● 包装方式(Packing method): |
● 耐电压(Withstand voltage):500VAC for 1 min | ● 最小包装(Minimum packing): |
资料下载
