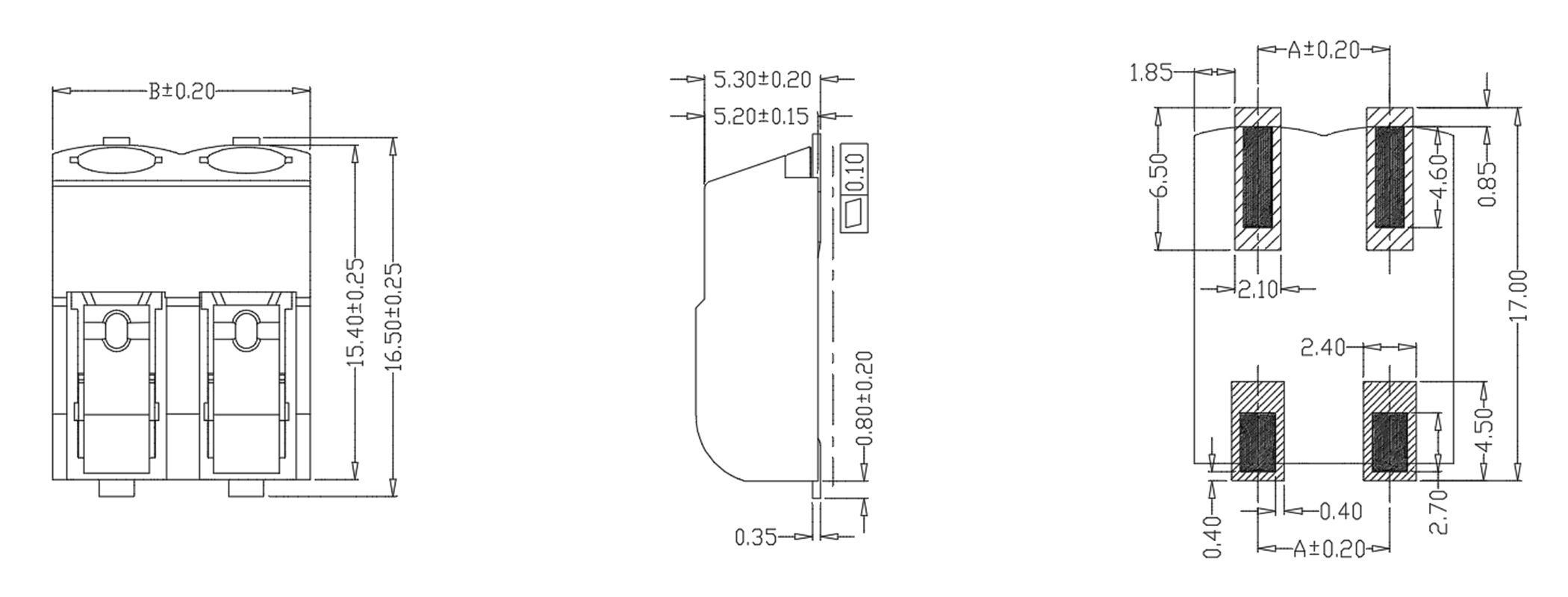

WAFER-2061
WAFER连接器 W15.4*H5.6 300V10A
产品介绍
技术参数
● 插座内芯(Inner core): | ● 绝缘电阻(Insulation resistance):≥1000MΩ |
● 插外孔(0uter hole): | ● 耐电压(Withstand voltage):1500VAC for 1 min |
● 温度范围(0perating temp):-40℃ T0+125℃) | ● 操作寿命(0peration life): |
● 额定负荷(Rated load):DC300V 10A | ● 插拔力(0perating force): |
● 接触电阻(Contact resistance):≤0.02Ω | ● 焊接方式(Welding mode): |
● 绝缘电阻(Insulation resistance):≥1000MΩ | ● 包装方式(Packing method): |
● 耐电压(Withstand voltage):1500VAC for 1 min | ● 最小包装(Minimum packing): |
