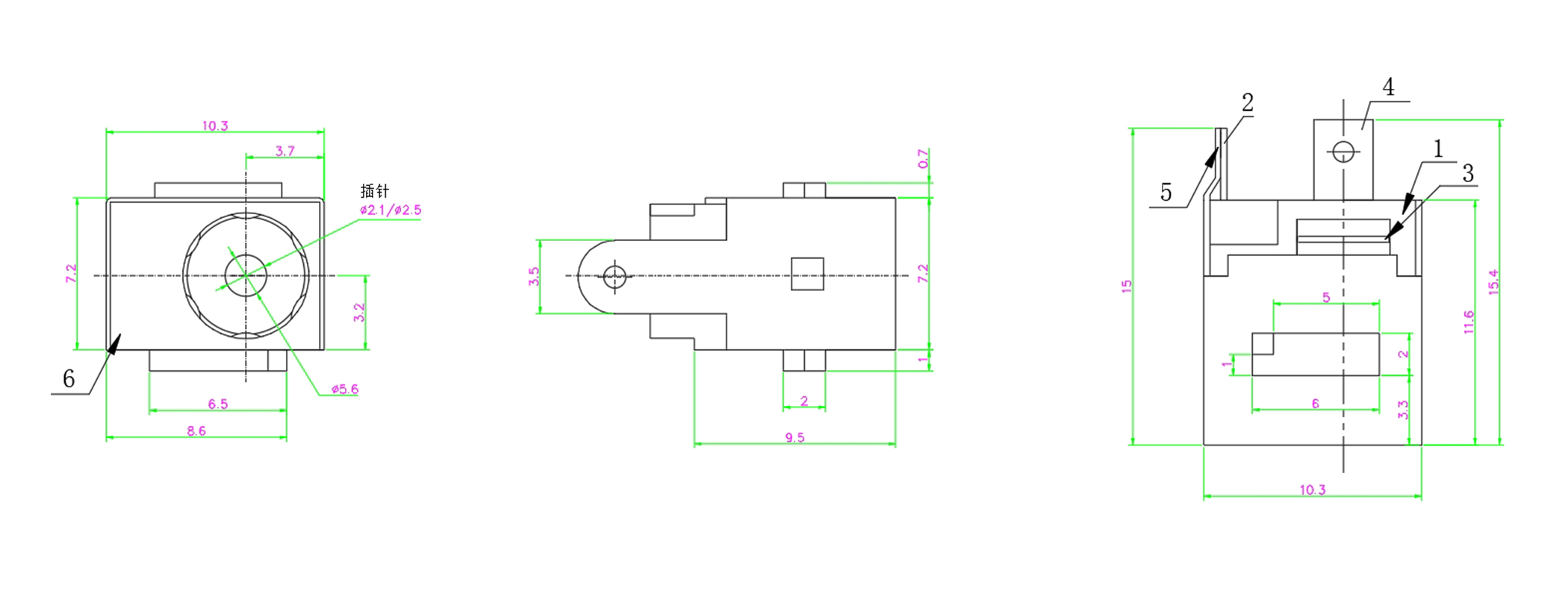

DC0144C-01-XXX
DC插座 L10.3*W7.2*H11.6*CH3.2 20V7A
产品介绍
技术参数
● 插座内芯(Inner core):Ø2.1/2.5 | ● 绝缘电阻(Insulation resistance):≥100MΩ |
● 插外孔(0uter hole): Ø5.6 | ● 耐电压(Withstand voltage):250VAC for 1 min |
● 温度范围(0perating temp):-25℃ T0+70℃) | ● 操作寿命(0peration life):5000Cycles Min |
● 额定负荷(Rated load):DC20V 7A | ● 插拔力(0perating force):3-25N |
● 接触电阻(Contact resistance):≤0.02Ω | ● 焊接方式(Welding mode): |
● 绝缘电阻(Insulation resistance):≥100MΩ | ● 包装方式(Packing method): |
● 耐电压(Withstand voltage):250VAC for 1 min | ● 最小包装(Minimum packing): |
