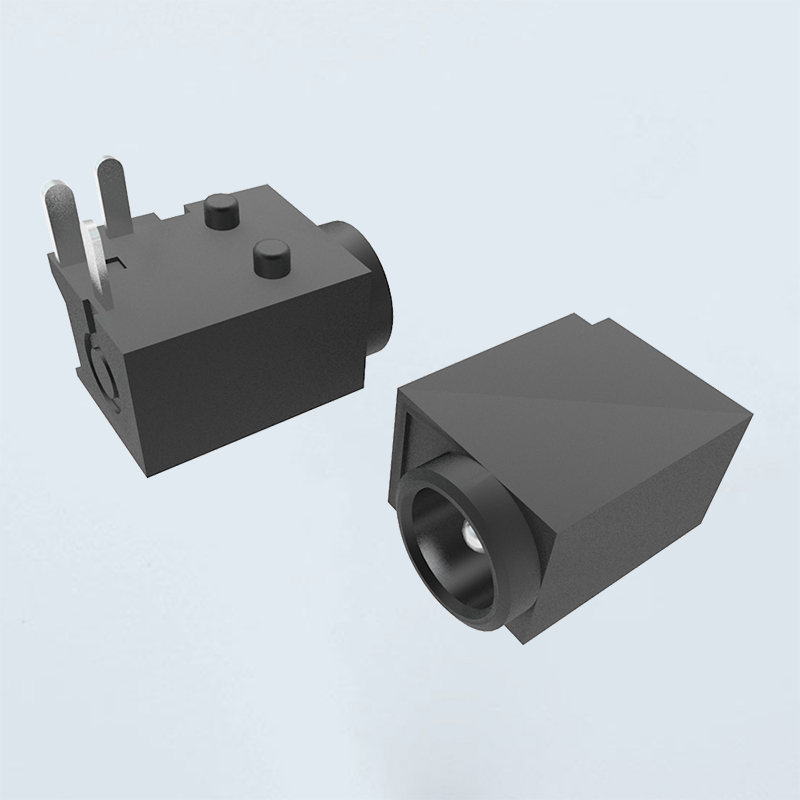

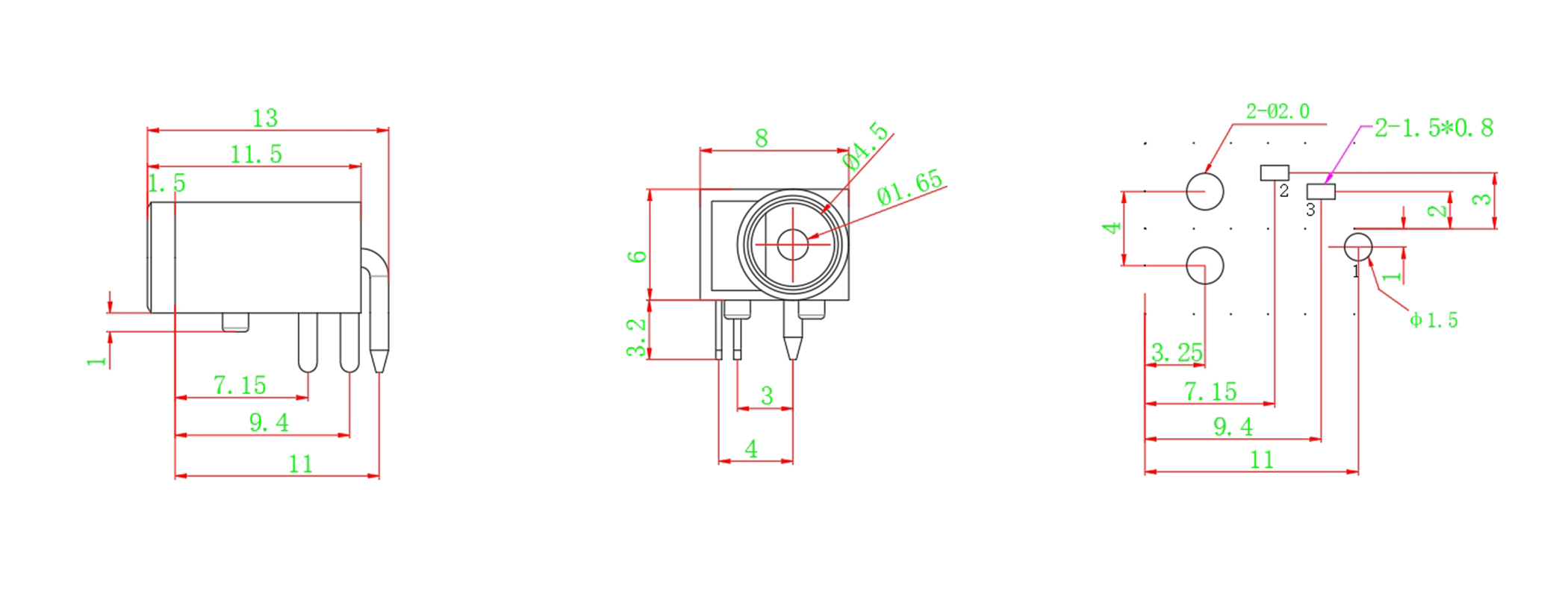

DC0043AX-XXX
DC插座 L13.0*W8.0*H6.0*CH3.0 12V4A
产品介绍
技术参数
● 插座内芯(Inner core):Ø1.65 | ● 绝缘电阻(Insulation resistance):≥100MΩ |
● 插外孔(0uter hole): Ø4.5 | ● 耐电压(Withstand voltage):250VAC for 1 min |
● 温度范围(0perating temp):-40℃ T0+55℃) | ● 操作寿命(0peration life):5000Cycles Min |
● 额定负荷(Rated load):DC12V 4A | ● 插拔力(0perating force):3-30N |
● 接触电阻(Contact resistance):≤0.03Ω | ● 焊接方式(Welding mode): |
● 绝缘电阻(Insulation resistance):≥100MΩ | ● 包装方式(Packing method): |
● 耐电压(Withstand voltage):250VAC for 1 min | ● 最小包装(Minimum packing): |
