DC0023C

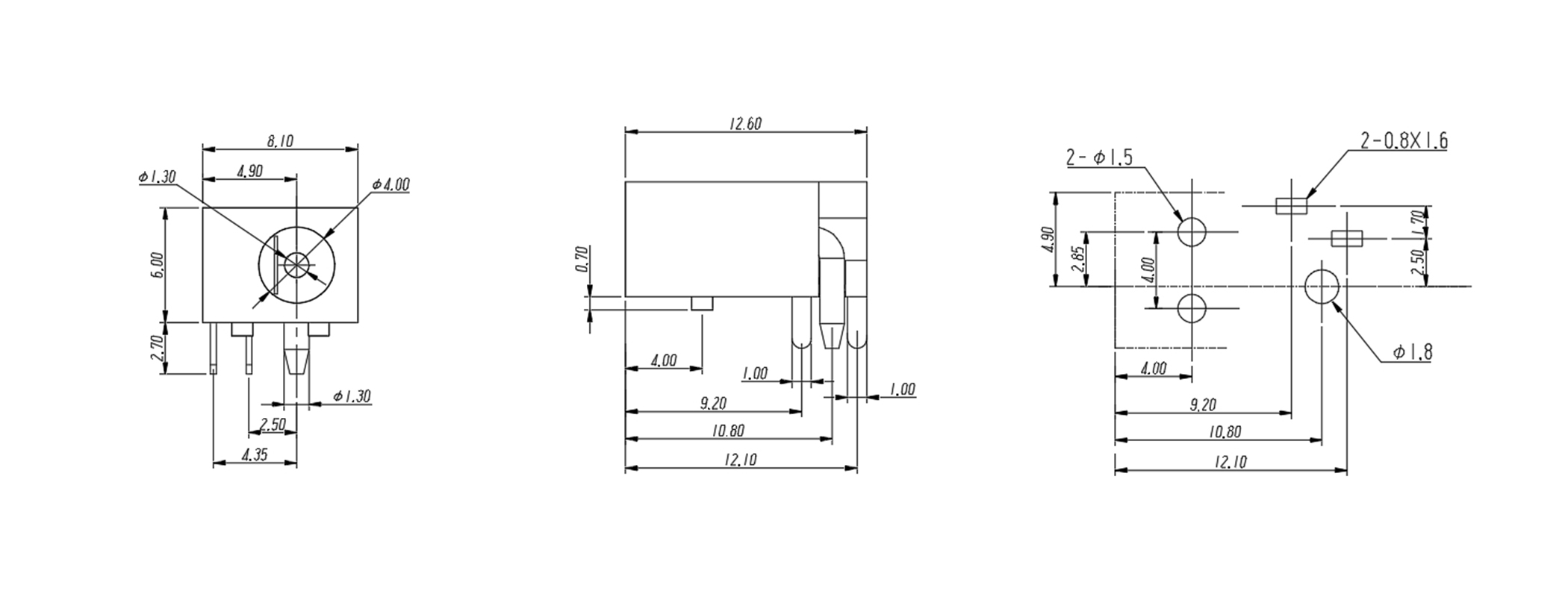

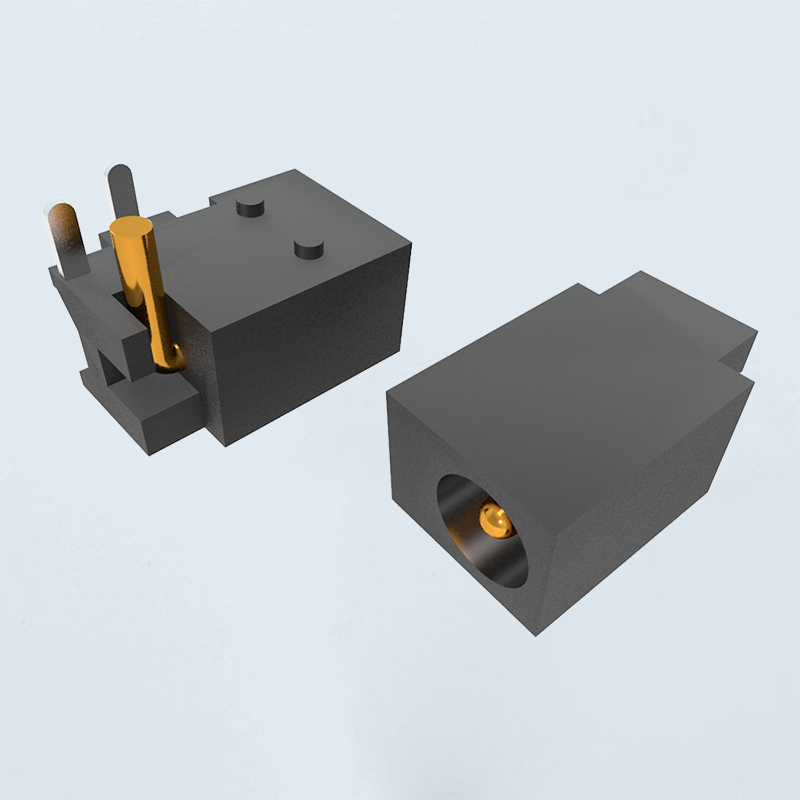

DC插座 L12.6*W8.1*H6.0 30V10A
产品介绍
技术参数
● 插座内芯(Inner core):Ø1.65 | ● 绝缘电阻(Insulation resistance):≥100MΩ |
● 插外孔(0uter hole): Ø4.0 | ● 耐电压(Withstand voltage):250VAC for 1 min |
● 温度范围(0perating temp):-30℃ T0+70℃) | ● 操作寿命(0peration life):5000Cycles Min |
● 额定负荷(Rated load):DC30V 10A | ● 插拔力(0perating force):3-15N |
● 接触电阻(Contact resistance):≤0.02Ω | ● 焊接方式(Welding mode): |
● 绝缘电阻(Insulation resistance):≥100MΩ | ● 包装方式(Packing method): |
● 耐电压(Withstand voltage):250VAC for 1 min | ● 最小包装(Minimum packing): |
资料下载
