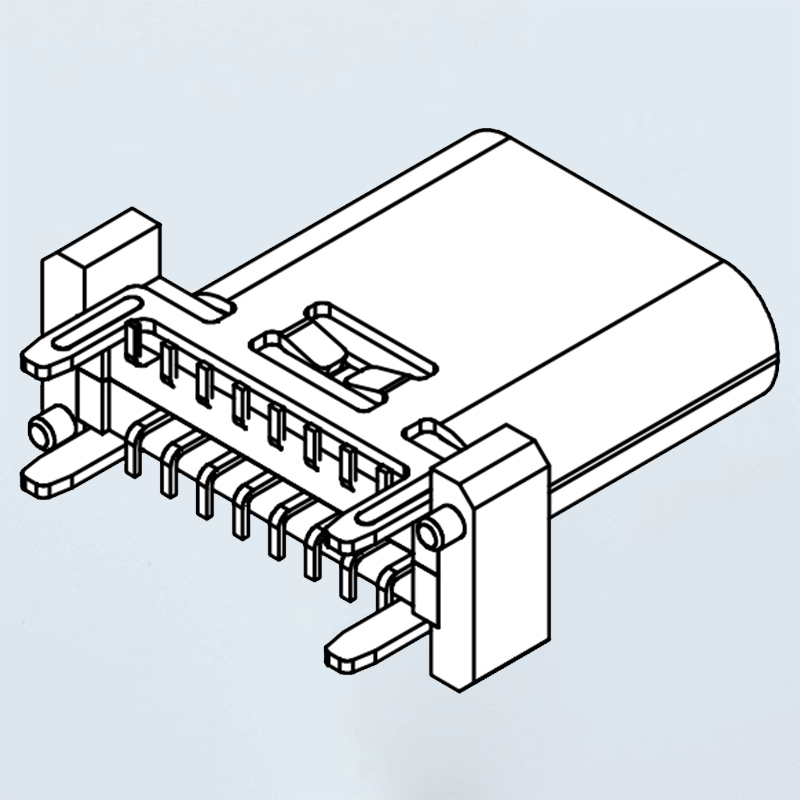

TYPEC-101 16PIN 立贴 10.0 10.5 A款

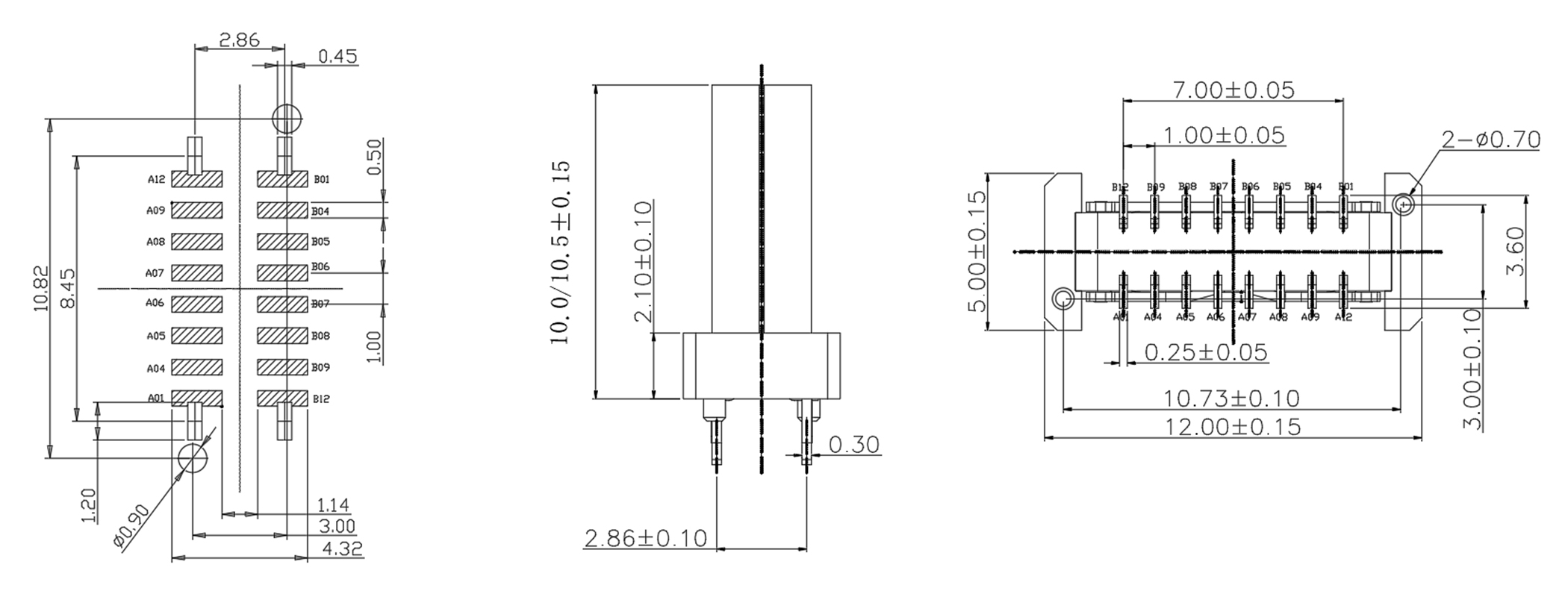

TYPEC连接器 L12.0*W5.0*H10.0/10.5 3A
产品介绍
技术参数
● 插座内芯(Inner core): | ● 绝缘电阻(Insulation resistance):≥100MΩ |
● 插外孔(0uter hole): | ● 耐电压(Withstand voltage):100VAC for 1 min |
● 温度范围(0perating temp):-25℃ T0+80℃) | ● 操作寿命(0peration life):10000Cycles Min |
● 额定负荷(Rated load):DC3A | ● 插拔力(0perating force):5-20N |
● 接触电阻(Contact resistance):≤0.05Ω | ● 焊接方式(Welding mode): |
● 绝缘电阻(Insulation resistance):≥100MΩ | ● 包装方式(Packing method): |
● 耐电压(Withstand voltage):100VAC for 1 min | ● 最小包装(Minimum packing): |
