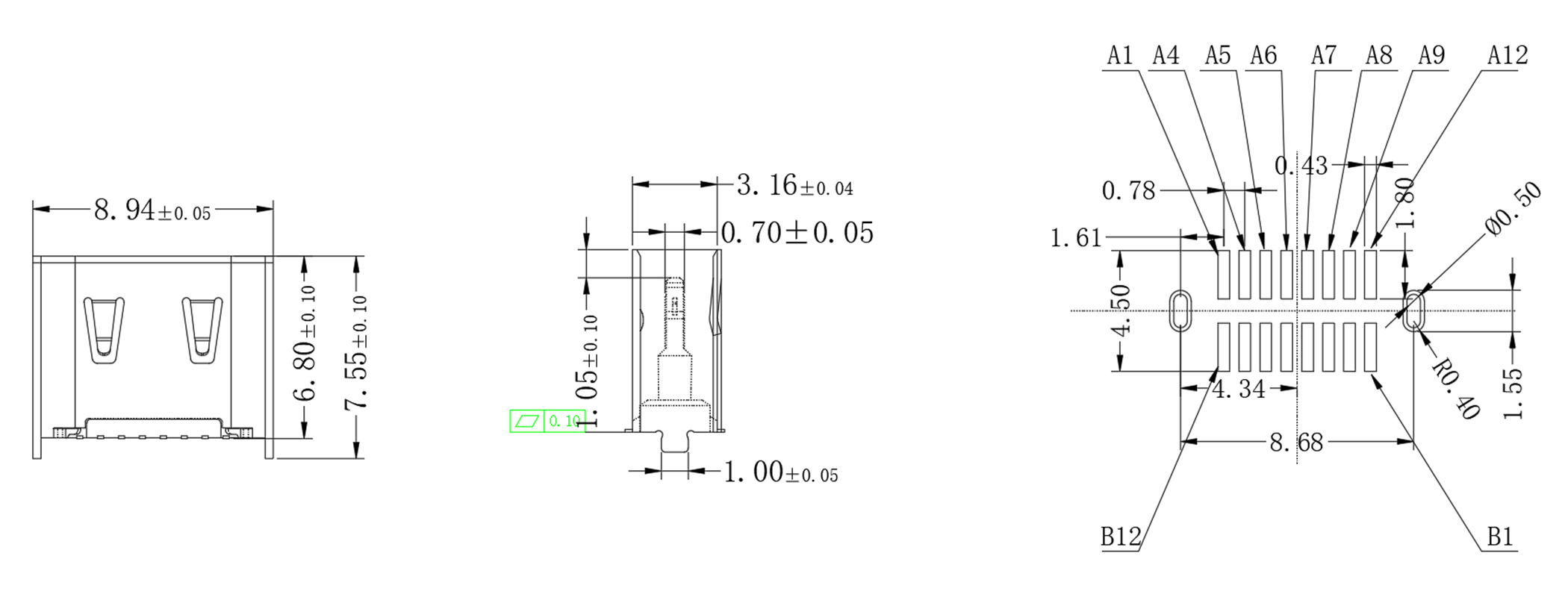

TYPEC-132 16P立贴带弹 H=6.8
TYPEC连接器 L8.94*W3.31*H6.8 5A
产品介绍
技术参数
● 插座内芯(Inner core): | ● 绝缘电阻(Insulation resistance):≥100MΩ |
● 插外孔(0uter hole): | ● 耐电压(Withstand voltage):100VAC for 1 min |
● 温度范围(0perating temp):-55℃ T0+88℃) | ● 操作寿命(0peration life):10000Cycles Min |
● 额定负荷(Rated load):DC5A | ● 插拔力(0perating force):8-20N |
● 接触电阻(Contact resistance):≤0.04Ω | ● 焊接方式(Welding mode): |
● 绝缘电阻(Insulation resistance):≥100MΩ | ● 包装方式(Packing method): |
● 耐电压(Withstand voltage):100VAC for 1 min | ● 最小包装(Minimum packing): |
